Product Specification
Model | MOP-30Y |
Air Volume(m3/h) | 1500m3/h |
Dimension （mm) | 350*350*847.5 |
Purification Efficiency | 99% |
Voltage | 380V |
Motor Power | 550W |
Frequency | 50/60Hz |
Suction Caliber(mm) | ø 125 |
Nosie(dB) | 65 |

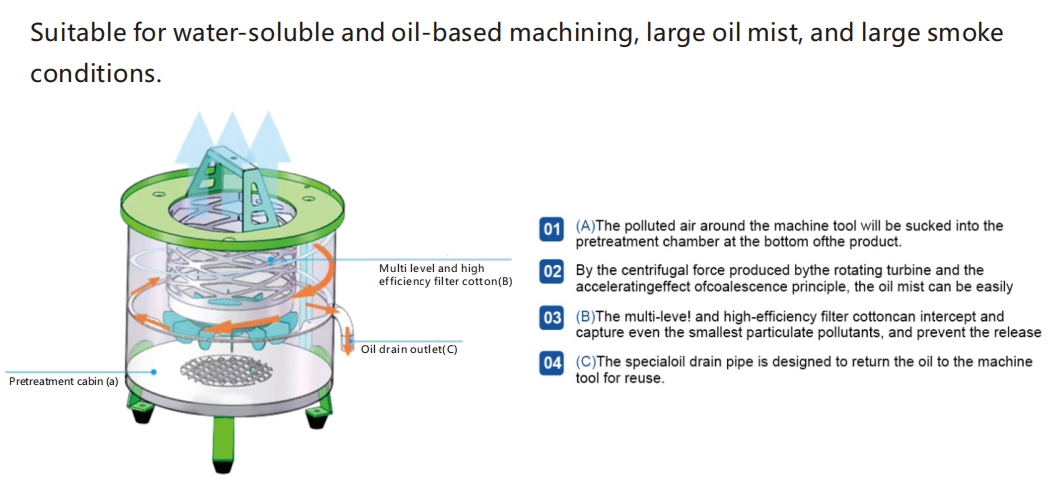

Product principle：
Product Benefits：
1. Small size, low energy consumption, and large air volume. The centrifugal structure design makes the product appearance small and saves installation space. The low resistance of the oil mist machine allows for greater air volume under the same power output, delivering energy efficiency and high performance.
2. High filtration efficiency. The product is equipped with filter cotton and high efficiency filter at the back end of the centrifugal structure to ensure the filtration accuracy and efficiency. Because the centrifugal structure is designed as a pre-treatment , a higher purification efficiency can be achieved by matching with filter cotton later. Compared with the traditional filter cotton oil mist collector, the filter cotton required is less and the cost is lower.
Usage: Effective treatment of dust, oil mist, water mist, smoke, odor, and harmful gas. The post processing can absorb more than0.02μm particles, the filtration effect is 99%.
Advantages: Simple installation, low maintenance cost, long service life.
