How Electrostatic Oil Fume Purifiers Work

In the realm of industrial and commercial ventilation, electrostatic oil fume purifiers have emerged as a revolutionary solution for efficiently removing oil fumes, smoke, and other particulate matter from the air. Their advanced technology ensures a cleaner and healthier environment, making them an essential asset for businesses in the food service industry, manufacturing, and more. In this blog post, we'll take a detailed look at how electrostatic oil fume purifiers work, exploring each step of the process to understand their remarkable efficiency.

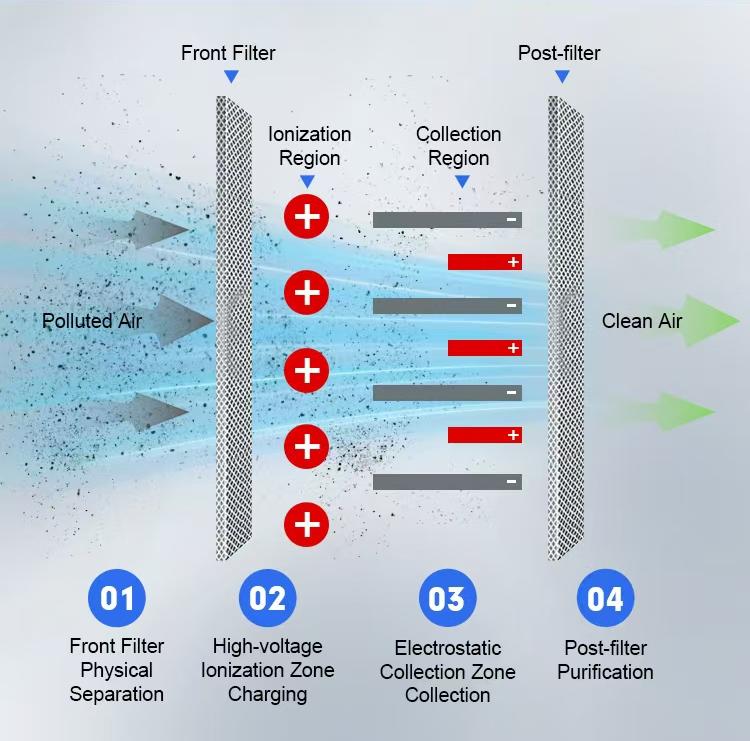

1. Pre-Filtration: The First Line of Defense

The purification process begins with pre-filtration. When the oil fume-laden air enters the purifier, it first passes through a pre-filter. This initial stage is crucial as it captures large particles such as grease droplets, food debris, and other coarse contaminants. The pre-filter acts like a net, preventing these larger particles from entering the subsequent stages of the purification process, thus protecting the more delicate components of the purifier.

2. Ionization: Charging the Particles

After pre-filtration, the air moves into the ionization section. Inside this part of the purifier, there are high-voltage electrodes that generate a strong electric field. As the air containing smaller particles passes through this electric field, the particles are ionized, which means they acquire an electric charge. These charged particles become "electrified," making them more easily influenced by electrical forces. This is a key step in the purification process, as it sets the stage for the efficient removal of these tiny contaminants.

3. Collection: Trapping the Charged Particles

Once the particles are ionized, they enter the collection section. This section consists of a series of parallel collector plates with an opposite electrical charge to that of the ionized particles. Due to the principle of electrostatic attraction, the charged particles are attracted to the collector plates. When they come into contact with the plates, the particles lose their charge and adhere to the surface. This effectively traps the particles, separating them from the air stream. The clean air then continues to flow through the purifier, while the collected particles are retained on the plates for later removal and disposal.

4. Post-Filtration: Polishing the Air

Some electrostatic oil fume purifiers may also include a post-filtration stage. This additional step further enhances the quality of the purified air by removing any remaining trace particles, odors, or harmful substances. Post-filters can be made of various materials, such as activated carbon, which is highly effective in absorbing odors and volatile organic compounds (VOCs). By the end of this stage, the air that exits the purifier is significantly cleaner and free from most of the oil fumes and contaminants that it initially carried.

Maintenance and Efficiency

To ensure the continuous efficient operation of electrostatic oil fume purifiers, regular maintenance is essential. The collector plates need to be cleaned periodically to remove the accumulated particles. If the plates become too dirty, their ability to attract and collect particles will be reduced, leading to a decrease in purification efficiency. Additionally, checking and maintaining other components, such as the pre-filters and electrical systems, is crucial for the overall performance of the purifier.

In conclusion, electrostatic oil fume purifiers utilize the principles of electrostatics to effectively remove oil fumes and contaminants from the air. Their multi-stage purification process, from pre-filtration to post-filtration, ensures a high level of air cleanliness. By understanding how these purifiers work, businesses can make informed decisions about implementing this technology to improve their indoor air quality, meet environmental regulations, and create a safer and more comfortable working environment.
